Puller-Tensioner – PT-3366

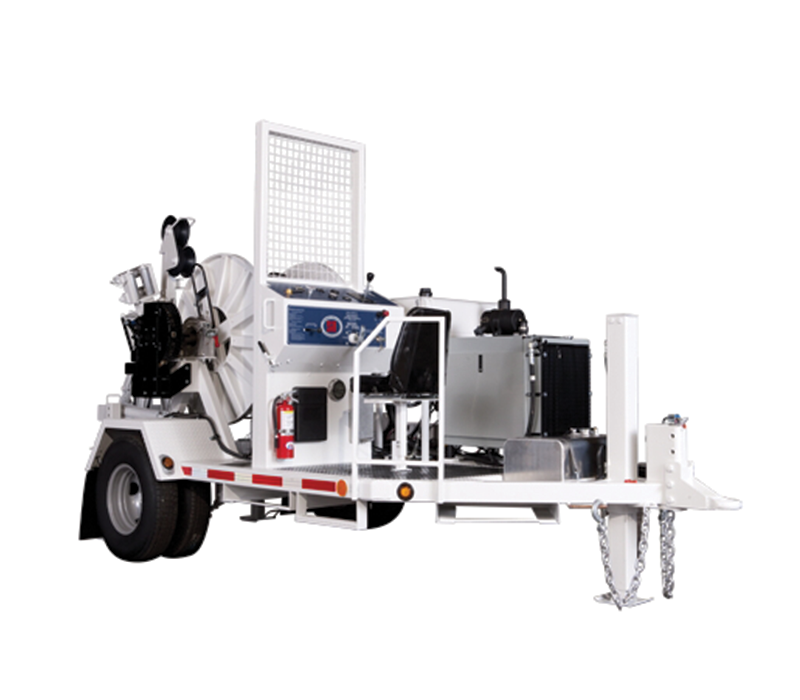

The Sherman + Reilly PT-3366 Puller-Tensioner is a versatile, multi-role machine for the installation of distribution and sub-transmission conductor. It serves as both a puller and/or a tensioner in one machine, thereby stretching equipment budgets. Rated at 68,000 inch- pounds of continuous torque, the PT-3366 is driven directly by a hydraulic motor. The elimination of mechanical features on this machine provides the safest and smoothest drive and tension possible.
A fail safe, automatic holding brake system engages if hydraulic pressure drops and the quick release drive coupling allows for quick disengagement of the payout brake and easy reel removal. The operator is positioned off the ground with a forward view of the machine for maximum visibility.
Its compact size and single-axle with dual tire design makes it easy to maneuver and to use in tight locations. Its broad suite of options affords utilities and contractors the flexibility to configure their machines to suit their specific needs in a standard design.
| Tensioning/Pulling Capacity, max.: | 68,000 in.-lb. cont. torque (4,500 lb. on 30 in. reel) |
| Pulling Speed, max.: | 2.5 mph |
| Maximum Reel Size: | 66 in. OD x 38 in. W (RM66.32) |
| Maximum Reel Weight: | 5,900 lb., with conductor |
| Spindle Diameter: | 2 5/8 in. |
| Drive System: | Hydraulic; direct drive, no chain |
| Engine: | Diesel, 42 HP, water-cooled |
| Hydraulic Fluid: | ISO Grade 32 |
| Hydraulic Reservoir: | 25 gal. |
| Fail-Safe Brake: | Spring-applied, released by hydraulic pressure |
| Fuel Capacity: | 18 gal. |
| Operator’s Safety Cage & Seat: | Standard |
| Frame Construction: | Steel tubing, continuous-weld |
| Length, overall, nom.: | 16 ft., 9 in. |
| Width, overall, nom.: | 8 ft. |
| Height to Top of Protective Screen, nom.: | 8 ft. 8 in. |
| Net Weight, no options, nom.: | 3,500 lb. |
| GVWR: | 11,000 lb. |
| Suspension: | Leaf spring |
| Axle Configuration: | Single |
| Wheel Configuration & Tires: | Dual, 235/85R16 |
| Brakes, trailer: | Electric, with safety break-away switch |
| Front/Nose Jack: | Hydraulic |
| Rear Jacks: | 2 Hydraulic |
| Wheel Chocks & Holders: | Standard |
| Towing Attachment: | 3 in. adjustable pintle eye |
| Safety Chains: | 2 ea., with hook |
| Electrical System: | 12 VDC |
| Lights, navigation: | US DOT LED, 12 VDC |
| Battery: | 12 VDC group 24 automotive |
| Grounding: | 3/4 in. dia. copper ground loops (4) |
| Fire Extinguisher: | ABC |
| Paint: | S+R White |
